TSS TRU



DESCRIPTION:

The type TRU is a seal with completely rubber covered outer diameter. This type of seal is designed with an extended metallic support of the diaphragm that allows pressures up to 0.5 MPa.

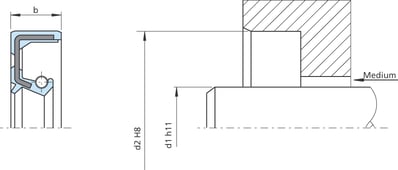

Installation Dimensions:

Shaft diameter, d1 h11                       120.0 mm

Bore diameter, d2 H8                        150.0 mm

Width, b                                                     12.0 mm



Material Information for the product(s) on this page

N7M

Colour:  black

Basic Material:   NBR/metal



Commercial Description:

A 70 durometer NBR bonded to a steel case. Comes with a steel spring. The properties of the nitrile rubber depend mainly on the ACN content which ranges between 18 % and 50 %.  In general it has good mechanical properties with an operating temperatures range of between -30 °C and +100 °C. NBR is mostly used with mineral based oils and greases and is a good choice for standard applications.



TSS item no.          Product name
TRU000080-N7MMR  TSS Radial Oil Seal TRU
TRU000120-N7MM2  TSS Radial Oil Seal TRU
TRU000120-N7MMF  TSS Radial Oil Seal TRU
TRU000120-N7MMR  TSS Radial Oil Seal TRU
TRU000160-V8BV2  TSS Radial Oil Seal TRU
TRU000160-VCBVR  TSS Radial Oil Seal TRU
TRU000170-N8MM  TSS Radial Oil Seal TRU
TRU000200-N7MMR  TSS Radial Oil Seal TRU
TRU000220-N7MM  TSS Radial Oil Seal TRU
TRU000220-N7MMR  TSS Radial Oil Seal TRU
TRU000220-VCBVR  TSS Radial Oil Seal TRU
TRU000230-V8BV2  TSS Radial Oil Seal TRU
TRU000230-VCBVR  TSS Radial Oil Seal TRU
TRU000230-X1N62  TSS Radial Oil Seal TRU
TRU000250-N8MM  TSS Radial Oil Seal TRU
TRU000250-N8MMR  TSS Radial Oil Seal TRU
TRU000250-VCBVR  TSS Radial Oil Seal TRU
TRU000280-V7MV  TSS Radial Oil Seal TRU
TRU000290-V8BV2  TSS Radial Oil Seal TRU
TRU000300-N7MM  TSS Radial Oil Seal TRU
TRU000300-N7MM2  TSS Radial Oil Seal TRU
TRU000300-N7MMR  TSS Radial Oil Seal TRU
TRU000300-N8MM5  TSS Radial Oil Seal TRU
TRU000300-V8BV2  TSS Radial Oil Seal TRU
TRU000300-V8BV5  TSS Radial Oil Seal TRU
TRU000300-VCBVR  TSS Radial Oil Seal TRU
TRU000350-N7MMA  TSS Radial Oil Seal TRU
TRU000350-V7MV  TSS Radial Oil Seal TRU
TRU000370-V8BV2  TSS Radial Oil Seal TRU
TRU000370-VCBVR  TSS Radial Oil Seal TRU
TRU000370-X1N62  TSS Radial Oil Seal TRU
TRU000400-N7MM  TSS Radial Oil Seal TRU
TRU000400-V8MV9  TSS Radial Oil Seal TRU
TRU000400-VCMV9  TSS Radial Oil Seal TRU
TRU000420-N7MM  TSS Radial Oil Seal TRU
TRU000450-A7MV  TSS Radial Oil Seal TRU
TRU000450-N8MM5  TSS Radial Oil Seal TRU
TRU000450-V7MV  TSS Radial Oil Seal TRU
TRU000460-V8BV2  TSS Radial Oil Seal TRU
TRU000460-VCBVR  TSS Radial Oil Seal TRU
TRU000460-X1N62  TSS Radial Oil Seal TRU
TRU000470-N7MM  TSS Radial Oil Seal TRU
TRU000500-N7MM  TSS Radial Oil Seal TRU
TRU000550-V7MV2  TSS Radial Oil Seal TRU
TRU000550-VCBVR  TSS Radial Oil Seal TRU
TRU000580-V7XXX  TSS Radial Oil Seal TRU
TRU000600BN7MVR  TSS Radial Oil Seal TRU
TRU000600-N7MM  TSS Radial Oil Seal TRU
TRU000600-N7MMR  TSS Radial Oil Seal TRU
TRU000600-N8MM2  TSS Radial Oil Seal TRU
TRU000600-VCBVR  TSS Radial Oil Seal TRU
TRU000650BN7MVR  TSS Radial Oil Seal TRU
TRU000650-N7MMR  TSS Radial Oil Seal TRU
TRU000700-VCBVR  TSS Radial Oil Seal TRU
TRU000800BN7MVR  TSS Radial Oil Seal TRU
TRU000800-N7MMR  TSS Radial Oil Seal TRU
TRU000800-N7XXX  TSS Radial Oil Seal TRU
TRU000850-N7XXX  TSS Radial Oil Seal TRU
TRU000900-N8MM5  TSS Radial Oil Seal TRU
TRU000900-VCBVR  TSS Radial Oil Seal TRU
TRU000950-N7MMR  TSS Radial Oil Seal TRU
TRU001000BN7MVR  TSS Radial Oil Seal TRU
TRU001000-N7MMR  TSS Radial Oil Seal TRU
TRU001200-N7MM  TSS Radial Oil Seal TRU
TRU001350-N8MMR  TSS Radial Oil Seal TRU
TRU001400BN7MMR  TSS Radial Oil Seal TRU
TRU001400-N7MMR  TSS Radial Oil Seal TRU
TRU001600-N7MM2  TSS Radial Oil Seal TRU
TRU001600-N7MMR  TSS Radial Oil Seal TRU
TRU001900-V8BV2  TSS Radial Oil Seal TRU
TRU002000-N7MMR  TSS Radial Oil Seal TRU
TRU100150-N7MMR  TSS Radial Oil Seal TRU
TRU100150-V7MV  TSS Radial Oil Seal TRU
TRU100200-N7MV2  TSS Radial Oil Seal TRU
TRU100220-N8MM5  TSS Radial Oil Seal TRU
TRU100280-N7MM  TSS Radial Oil Seal TRU
TRU100280-VCBVR  TSS Radial Oil Seal TRU
TRU100300-N8MM2  TSS Radial Oil Seal TRU
TRU100350-A7MM  TSS Radial Oil Seal TRU
TRU100350-N7MM2  TSS Radial Oil Seal TRU
TRU100350-V7MV  TSS Radial Oil Seal TRU
TRU100400-N7MM  TSS Radial Oil Seal TRU
TRU100400-N8MM2  TSS Radial Oil Seal TRU
TRU100400-N8MM5  TSS Radial Oil Seal TRU
TRU100450BN7MMR  TSS Radial Oil Seal TRU
TRU100450-N7MMR  TSS Radial Oil Seal TRU
TRU100450-N8MM5  TSS Radial Oil Seal TRU
TRU100500-N7MM2  TSS Radial Oil Seal TRU
TRU100500-N8MM5  TSS Radial Oil Seal TRU
TRU100500-V8BV  TSS Radial Oil Seal TRU
TRU100550-VCBVN  TSS Radial Oil Seal TRU
TRU100550-VCBVR  TSS Radial Oil Seal TRU
TRU100600-V8BV2  TSS Radial Oil Seal TRU
TRU100600-VCBVR  TSS Radial Oil Seal TRU
TRU100700-N8MMS  TSS Radial Oil Seal TRU
TRU100700-VCBVR  TSS Radial Oil Seal TRU
TRU100900BN7MVR  TSS Radial Oil Seal TRU
TRU100900-N7MMR  TSS Radial Oil Seal TRU
TRU101200BN7MVR  TSS Radial Oil Seal TRU
TRU101200-N7MMR  TSS Radial Oil Seal TRU
TRU101600-N7MM2  TSS Radial Oil Seal TRU
TRU101600-N7MMR  TSS Radial Oil Seal TRU
TRU200120-N8MMR  TSS Radial Oil Seal TRU
TRU200200-N7MM2  TSS Radial Oil Seal TRU
TRU200220-N7MMR  TSS Radial Oil Seal TRU
TRU200300-N8MM5  TSS Radial Oil Seal TRU
TRU200350-N7MM2  TSS Radial Oil Seal TRU
TRU200400-N8MM2  TSS Radial Oil Seal TRU
TRU200400-N8MMR  TSS Radial Oil Seal TRU
TRU200450-N8MM5  TSS Radial Oil Seal TRU
TRU200500-N8MM2  TSS Radial Oil Seal TRU
TRU200500-N8MMS  TSS Radial Oil Seal TRU
TRU200550BN7MMR  TSS Radial Oil Seal TRU
TRU200550-N7MMR  TSS Radial Oil Seal TRU
TRU200900-VCBVR  TSS Radial Oil Seal TRU
TRU300200-N7MM2  TSS Radial Oil Seal TRU
TRU300200-N7MMR  TSS Radial Oil Seal TRU
TRU300350-N7MMR  TSS Radial Oil Seal TRU
TRU300400-N7MMR  TSS Radial Oil Seal TRU
TRU300400-V8BV2  TSS Radial Oil Seal TRU
TRUB00400-V7MV2  TSS Radial Oil Seal TRU
