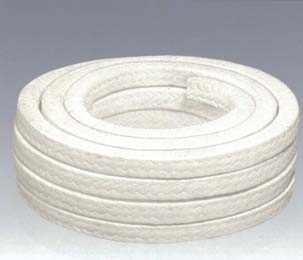

Unichem 6313

UNICHEM is made from pure PTFE yarn with an additional PTFE impregnation and lubricant. It has a very dense but soft and pliable structure so that sealing can be achieved with a minimum of gland pressure.
Due to its excellent lubrication UNICHEM exhibits very low friction.

Data Sheet:-

Temp. min. -100
Temp. max. 250
Einsatz für Ventile nein

More Info:-

Rotary pump packing ideal for all chemical media

Application Limits

P	15 bar	220 psi
T	-100..+250(C	-148..+482(F
V	8 m/s	1600 ft/min
pH	0..14	0..14

Media

All chemicals including concentrated hot acids and alkalis.

Exceptions:

Molten alkali metals, fluorine and some fluorine compounds.

UNICHEM is made from pure PTFE yarn with an additional PTFE impregnation and lubricant. It has a very dense but soft and pliable structure so that sealing can be achieved with a minimum of gland pressure. Due to its excellent lubrication UNICHEM exhibits very low friction.

UNICHEM materials are approved for use in the food processing industries.

UNICHEM is also available in a flat tape material for static sealing.*

*Dimensions available on request

Very pliable	Provides excellent sealing effect
Very dense when compressed	Very low leakage performance
0 – 14 pH range	Can be used in all chemical applications

mm	inch	G/m	M/kg	Kg/box	Reference no	In stock
3	1/8	15	64.6	1	24107742
4		28	36.3	1	24107743
5	3/16	43	23.3	1	24107744
6		62	16.1	1	24107745
	¼	70	14.2	1	24124436
8	5/16	110	9.1	2	24107746	*
	3/8	156	6.4	2	24121470
10		172	5.8	2	24107747	*
12		248	4.0	3	24107748	*
	½	277	3.6	3	24120009
14	9/16	337	3.0	3	24116266
15		387	2.6	3	24117707
16	5/8	440	2.3	3	24116267	*
18		557	1.8	3	24115577
19	¾	621	1.6	3	24266456
20		688	1.5	5	24115575	*
22	7/8	832	1.2	5	24115576
25	1	1075	0.9	10	24120976	*
