UNIVERDIT has extremely good resistance to gas permeation and has the ability to embed
abrasive particles. UNIVERDIT remains self-lubricating even during extended periods of operation and therefore reduces friction on shafts and spindles.
Data Sheet:-
More Info:-
Special high-density pump and valve packing
Application Limits
P |
25 bar1 160 bar2* |
362 psi1 2230 psi2* |
T | -30 ....+250(C | -22 ...+482(F |
V | 6 m/s | 1200 ft/min |
pH | 0 ...14 | 0..14 |
1 Rotary pumps 2 Valves
Media
Acids, lyes, solvents, vapour, gases, solidifying plastics, adhesives, lacquers, cristalline abrasive media such as salt, slurries, ceramic pastes.
(Exceptions: oleum, heavy concentrations of nitric acid).

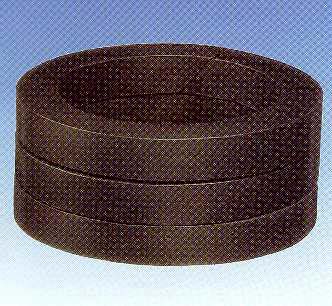

Compact extruded packing made of PTFE graphite compound.
UNIVERDIT has extremely good resistance to gas permeation and has the ability to embed abrasive particles. UNIVERDIT remains self-lubricating even during extended periods of operation and therefore reduces friction on shafts and spindles. Generally, UNIVERDIT must always be installed with end rings. End-ring selection is dependent on application parameters.
Very high density | Resistance to gas permeation |
Both pliable and volumetrically stable | Easy installation and long service life |
Ability to absorb media particles | Ideal for sealing abrasive media |
Self-lubricating | Can run “dry” in some applications |
mm | inch | G/m | M/kg | Kg/box | Reference no | In stock |
3 | 1/8 | 16 | 61.73 | 1 | 24139912 |
|
4 |
|
29 | 34.72 | 1 | 24115567 |
|
5 | 3/16 | 45 | 22.22 | 1 | 24107764 |
|
6 |
|
65 | 15.43 | 1 | 24107765 |
|
|
¼ | 73 | 13.78 | 1 | 24121706 |
|
8 | 5/16 | 115 | 8.68 | 2 | 24107766 |
|
|
3/8 | 161 | 6.22 | 2 | 24117922 |
|
10 |
|
180 | 5.56 | 2 | 24107767 | * |
12 |
|
259 | 3.86 | 3 | 24107768 |
|
|
½ | 290 | 3.44 | 3 | 24117923 |
|
14 | 9/16 | 353 | 2.83 | 3 | 24107770 | * |
15 |
|
405 | 2.47 | 3 | 24120253 |
|
16 | 5/8 | 461 | 2.17 | 3 | 24107771 |
|
18 |
|
583 | 1.71 | 3 | 24115709 |
|
19 | ¾ | 650 | 1.54 | 3 | 24120998 |
|
20 |
|
720 | 1.39 | 5 | 24107772 |
|
22 | 7/8 | 871 | 1.15 | 5 | 24141641 |
|
25 | 1 | 1125 | 0.89 | 10 | 24116047 |
Carbosteam 6550
Carbosteam
S 6555
G-Spezial 6560
G-Spezial S 6565
Special
Carbon 6540
Uniflex 6588
Unimix Black 7106
Unimix White 7105
