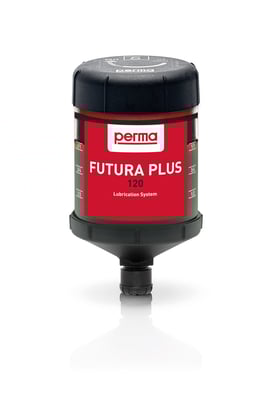

perma FUTURA PLUS

perma FUTURA PLUS can be used in all types of applications with ambient temperatures from 0 to +40 °C. Depending on operating conditions, a lubricant volume of 120 cm³ is dispensed in 1, 3, 6 or 12 months. Reliable function is based on an electrochemical reaction, which is started by simply turning the activation cap. The contained gas generator generates a pressure of max. 4 bar, which moves the piston forward and transports lubricant into the lubrication point.

Applications

Dirt and water must not enter the lubrication points

perma FUTURA PLUS

perma FUTURA PLUS

perma FUTURA PLUS is used for single-point lubrication of roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals, chains etc. Main application areas are wind turbines and the food industry. perma FUTURA PLUS has a corrosion-proof plastic housing, which makes it ideal for hygienically clean environments.

Product characteristics

Simple activation through integrated activator
One-time activation: 1, 3, 6 or 12 months

- No separate activator necessary
- Tamper-proof, easy to use
- Economical, permanent lubrication
- Quick and easy exchange without special tools

Transparent plastic housing with integrated support flange

- Easy fill level check via permanently visible position of piston in lubrication system
- Corrosion-proof

Ex-proof certification

- Safe and reliable lubrication in explosive areas
- Better workplace safety, since dangerous areas have to be visited for maintenance less often

Technical Data

Drive

Electrochemical reaction
Housing

Transparent plastic
Discharge period

1, 3, 6, 12 months
Lubricant volume

120 cm³
Operating temperature

0 to +40 °C
Pressure build-up

Max. 4 bar
Lubricants

Grease up to NLGI 2 / oil
Max. tube lengths

1.00 m
CE

✅
Ex

✅

INSTALLATION KITS

INSTALLATION KIT Direct Mounting
(Art. No. 101476)

INSTALLATION KIT Direct Mounting

Order lubrication system separately

	Contents
A	1 x Reducer G1/8 male x G1/4 female 1 x Reducer M6 male x G1/4 female 1 x Reducer M8x1 male x G1/4 female 1 x Reducer M10x1 male x G1/4 female
B	1 x Extension G1/4 male x G1/4 female - 45 mm
C	1 x Angle 45° G1/4 male x G1/4 female

INSTALLATION KIT Remote Mounting with Heavy Duty hose
(Part no. 101481)

INSTALLATION KIT Remote Mounting with Heavy Duty hose

Order lubrication system separately

	Contents
A	1 x Reducer G1/8male x G1/4 female 1 x Reducer M6 male x G1/4 female 1 x Reducer M8x1 male x G1/4 female 1 x Reducer M10x1 male x G1/4 female
B	1 x Extension G1/4 male x G1/4 female - 45 mm
C	1 x Angle 45° G1/4 male x G1/4 female
D	2 x Tube connector G1/4 male for tube iØ 9,5 mm (steel, zinc-plated) - push-lock
E	1.5 m Heavy Duty hose up to +100 °C (with NBR lining and fabric insert)
F	1 x 1 point bracket G1/4 female for 1 lubrication system

Part numbers

perma FUTURA PLUS Grease filled for 1 Month
Description	Art. No.
perma Multipurpose grease SF01	113917
perma Extreme pressure grease SF02	113921
perma High temp. grease SF03	113923
perma High performance grease SF04	113927
perma High temp. / Extreme pressure grease SF05	113931
perma Liquid grease SF06	113935
perma High speed grease SF08	113939
perma Multipurpose bio grease SF09	113943
perma Food grade grease H1 SF10	113947

perma FUTURA PLUS Grease filled for 3 Months
Description	Art. No.
perma Multipurpose grease SF01	113918
perma Extreme pressure grease SF02	113922
perma High temp. grease SF03	113924
perma High performance grease SF04	113928
perma High temp. / Extreme pressure grease SF05	113932
perma Liquid grease SF06	113936
perma High speed grease SF08	113940
perma Multipurpose bio grease SF09	113944
perma Food grade grease H1 SF10	113948

perma FUTURA PLUS Grease filled for 6 Months
Description	Art. No.
perma Multipurpose grease SF01	113919
perma Extreme pressure grease SF02	113602
perma High temp. grease SF03	113925
perma High performance grease SF04	113929
perma High temp. / Extreme pressure grease SF05	113933
perma Liquid grease SF06	113937
perma High speed grease SF08	113941
perma Multipurpose bio grease SF09	113945
perma Food grade grease H1 SF10	113949

perma FUTURA PLUS Grease filled for 12 Months
Description	Art. No.
perma Multipurpose grease SF01	113920
perma Extreme pressure grease SF02	113603
perma High temp. grease SF03	113926
perma High performance grease SF04	113930
perma High temp. / Extreme pressure grease SF05	113934
perma Liquid grease SF06	113938
perma High speed grease SF08	113942
perma Multipurpose bio grease SF09	113946
perma Food grade grease H1 SF10	113950

perma FUTURA PLUS Oil filled for 1 Month (with integrated oil retaining valve)
Description	Art. No.
perma High performance oil SO14	113951
perma Multipurpose oil SO32	113955
perma Bio oil, low viscosity SO64	113959
perma Bio oil, high viscosity SO69	113963
perma Food grade oil H1 SO70	113967

perma FUTURA PLUS Oil filled for 3 Months (with integrated oil retaining valve)
Bezeichnung	Art. No.
perma High performance oil SO14	113952
perma Multipurpose oil SO32	113956
perma Bio oil, low viscosity SO64	113960
perma Bio oil, high viscosity SO69	113964
perma Food grade oil H1 SO70	113968

perma FUTURA PLUS Oil filled for 6 Months (with integrated oil retaining valve)
Bezeichnung	Art. No.
perma High performance oil SO14	113953
perma Multipurpose oil SO32	113957
perma Bio oil, low viscosity SO64	113961
perma Bio oil, high viscosity SO69	113965
perma Food grade oil H1 SO70	113969

perma FUTURA PLUS Oil filled for 12 Months (with integrated oil retaining valve)
Bezeichnung	Art. No.
perma High performance oil SO14	113954
perma Multipurpose oil SO32	113958
perma Bio oil, low viscosity SO64	113962
perma Bio oil, high viscosity SO69	113966
perma Food grade oil H1 SO70	113970
