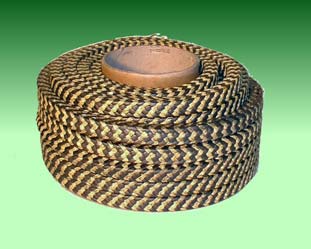

VARILON SG is especially suitable for sealing high-speed shafts. Due to the high amount
of graphite-filled PTFE yarn, the packing has very good running qualities and high heat conduction. The aramid yarn provides a high strength.
Data Sheet:-
More Info:-
Rotary pump packing
Application Limits
P | 25 bar | 362 psi |
T | -50..+280(C | -58..+536(F |
V | 20 m/s | 3900 ft/min |
pH | 1..13 | 5..13 |
Media
Hot water, alkalis, organic solvents, salt solutions, hydrocarbons, oils, greases, medium concentration acids.
VARILON SG is especially suitable for sealing high-speed shafts. Due to the high amount of graphite-filled PTFE yarn, the packing has very good running qualities and high heat conduction. The aramid yarn provides a high strength.
By virtue of the special construction, the protruding graphite-filled PTFE yarn runs smoothly on the shaft after installation. This provides minimum shaft wear and guarantees a long service
life.
Robust and wear resistant | Dry running possible |
Tough aramid yarn | Resistant to abrasive media |
Special braiding construction bringing PTFE/Graphite yarn into contact with shaft | Smooth running, low wear |
mm | inch | G/m | M/kg | Kg/box | Reference no | In stock |
3 | 1/8 | 14 | 73.10 | 1 |
|
|
4 |
|
24 | 41.12 | 1 | 24375384 |
|
5 | 3/16 | 38 | 26.32 | 1 | 70018521 |
|
6 |
|
55 | 18.27 | 1 | 24372756 |
|
|
¼ | 61 | 16.32 | 1 | 70018540 |
|
8 | 5/16 | 97 | 10.28 | 2 | 24372757 |
|
|
3/8 | 137 | 7.29 | 2 | 70018524 |
|
10 |
|
152 | 6.58 | 2 | 24372758 |
|
12 |
|
219 | 4.57 | 3 | 24259991 |
|
|
½ | 245 | 4.08 | 3 | 24374006 |
|
14 | 9/16 | 298 | 3.36 | 3 |
|
|
15 |
|
342 | 2.92 | 3 |
|
|
16 | 5/8 | 389 | 2.57 | 3 |
|
|
18 |
|
492 | 2.03 | 3 |
|
|
19 | ¾ | 549 | 1.82 | 3 |
|
|
20 |
|
608 | 1.64 | 5 | 24372763 |
|
22 | 7/8 | 736 | 1.36 | 5 | 70018526 |
|
25 | 1 | 950 | 1.05 | 10 | 70018537 |
|
