Cold and hot water, steam, aqueous solutions, almost universally against acids, and
lyes.
Exceptions: strongly oxidizing salt solutions, concentrated sulphuric and nitric
acid.
Data Sheet:-
More Info:-

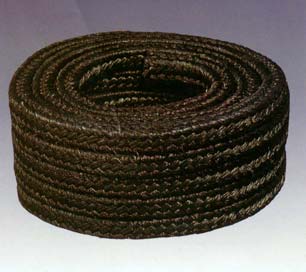

High speed pump packing
Application Limits
P | 25 bar | 362 psi |
T | .+300(C | +572(F |
V | 25 m/s | 4900 ft/min |
pH | 0..14 | 0..14 |
Media
Cold and hot water, steam, aqueous solutions, almost universally against acids, and lyes.
Exceptions: strongly oxidizing salt solutions, concentrated sulphuric and nitric acid.
CARBOFLEX is characterised by volumetric stability and a high level of chemical resistance. The low coefficient of expansion, low friction and the ability to ease
the critical running-in phase prevent sudden, uncontrolled build-up of heat at high operating speeds. The impregnation as well as the special lubricant is adapted for carbon fibres and assist
running in.
High purity carbon yarn ensures excellent heat dissipation | Suitable for very high speed rotary applications |
Low coefficient of friction | Prevents sudden heat build up during run-in phase |
Excellent thermal conductivity | Can often run without lantern flush, reducing water costs |
mm | inch | G/m | M/kg | Kg/box | Reference no | In stock |
6 |
|
49 | 20.6 | 1 | 529376 |
|
8 | 5/16 | 86 | 11.6 | 2 | 24149151 |
|
|
3/8 | 122 | 8.2 | 2 | 24149869 |
|
10 |
|
135 | 7.4 | 2 | 24182525 |
|
12 |
|
194 | 5.1 | 3 | 24182526 |
|
|
½ | 218 | 4.6 | 3 | 24183632 |
|
14 | 9/16 | 265 | 3.8 | 3 | 24188842 |
|
15 |
|
304 | 3.3 | 3 | 24195271 |
|
16 | 5/8 | 346 | 2.9 | 3 | 24195272 |
|
18 |
|
437 | 2.3 | 3 | 24195295 |
|
19 | ¾ | 487 | 2.1 | 3 | 24367033 |
|
20 |
|
540 | 1.9 | 5 | 49003560 |
|
25 | 1 | 844 | 1.2 | 10 | 70200207 |
Carbosteam 6550
Carbosteam
S 6555
G-Spezial 6560
G-Spezial S 6565
Special
Carbon 6540
Uniflex 6588
Unimix Black 7106
Unimix White 7105
