perma STAR CONTROL

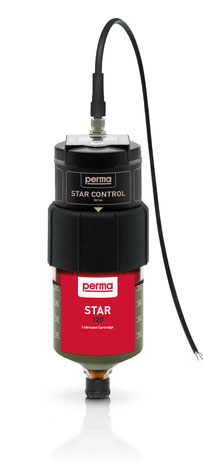

In contrast to the perma STAR VARIO (with battery pack), the perma STAR CONTROL is supplied with external power via cable. The operating status can be transmitted to a PLC and evaluated. The two integrated operating modes TIME and IMPULSE offer flexible use. In TIME mode, lubricant discharge is based on operating hours. In IMPULSE mode, a precisely defined quantity is dispensed as soon as voltage is supplied.
The perma STAR CONTROL consists of an electromechanical drive and an LC with 60, 120 or 250 cm³ of lubricant. The required mode is set on the drive. Lubrication is precise and temperature-independent at a counter pressure up to 6 bar.







Applications

perma STAR CONTROL is used to lubricate roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains. Due to the precise lubricant metering, perma STAR CONTROL is ideally suited for lubrication of electric motors with specified lubricant quantities. The system is protected against dust and water jets, subject to correct assembly of the individual parts (IP65).





Product characteristics

LCD display with push button shows discharge settings, LC size and operating status

Setting: Mode, LC size, discharge quantity and PIN

  • - Flexible handling via simple setting of TIME or IMPULSE mode; can be changed at any time
  • - Fast, simple control of settings, remaining impulses or operating hours until exchange
  • - Freely selectable PIN protects against possible tampering

Electromechanical drive with external power supply

LED (red / green) visible all round signals functioning and errors

  • - Reliable, precise lubricant discharge independent of temperature and counter pressure
  • -Quick function control due to visual or electronic signals on the lubrication system and plant error reporting system saves time and relieves maintenance workers

Pressure build-up to 6 bar allows remote mounting up to 5 m

Manual additional discharge via push button on display (purge)

  • - Mounting up to 5 m outside of dangerous areas or at easy-to-access locations increases workplace safety
  • - Higher equipment availability since LC can be easily exchanged during running operation
  • - Lubrication point can be purged to clear blockages

Technical Data

  • Drive
    Electromechanical
  • Power supply
    External: 9 - 30 V DC, I (max) 0,5 A
  • Discharge period
    1, 2, 3, ..., 12 months / Impulse control
  • Lubricant volume
    60 cm³, 120 cm³, 250 cm³
  • Operating temperature
    -20 °C to +60 °C
  • Pressure build-up
    6 bar
  • Number of outlets
    1
  • Protection class
    IP 65
  • Lubricants
    Grease up to NLGI 2 / oil
  • Max. tube lengths
    5.00 m
  • Impulse controlled
  • CE



INSTALLATION KITS

INSTALLATION KIT Direct Mounting
(Art. No. 101477)

Order lubrication system separately

  Contents
A 1 x Reducer G1/8 male x G1/4 female
1 x Reducer M6 male x G1/4 female
1 x Reducer M8x1 male x G1/4 female
1 x Reducer M10x1male x G1/4 female
B 1 x Extension G1/4male x G1/4 female - 45 mm
C 1 x Angle 45° G1/4 male x G1/4 female
D 1 x Support flange STAR G1/4 male x G1/4 female

INSTALLATION KIT Remote Mounting with Heavy Duty hose
(Art. No. 101482)

Order lubrication system separately

  Contents
A 1 x Reducer G1/8male x G1/4 female
1 x Reducer M6 male x G1/4 female
1 x Reducer M8x1 male x G1/4 female
1 x Reducer M10x1 male x G1/4 female
B 1 x Extension G1/4 male x G1/4 female - 45 mm
C 1 x Angle 45° G1/4 male x G1/4 female
D 2 x Tube connector G1/4 male for tube iØ 9,5 mm (steel, zinc-plated) - push-lock
E 3 m Heavy Duty hose up to +100 °C (with NBR lining and fabric insert)
F 1 x 1 point bracket G1/4 female for 1 lubrication system
G 1 x Support flange STAR G1/4 male x G1/4 female



Part numbers

perma STAR CONTROL
Description Art. No.
perma STAR CONTROL Drive 108985
Cable STAR CONTROL 5 m 108432
Cable STAR CONTROL 10 m 108431
Cable STAR CONTROL 20 m 110512
Support flange STAR G1/4 male x G1/4 female (brass / plastic) 109420
Protection cap STAR Standard Duty 60 / 120 (plastic) 109520
Protection cap STAR Standard Duty 250 (plastic) 109519
Adapter cable STAR CONTROL 30 cm angled 109521
perma STAR LC 60 Grease
Description Art. No.
perma Multipurpose grease SF01 104044
perma Extreme pressure grease SF02 104048
perma High temp. grease SF03 104051
perma High performance grease SF04 104054
perma High temp. / Extreme pressure grease SF05 104057
perma Liquid grease SF06 104061
perma High speed grease SF08 104063
perma Multipurpose bio grease SF09 104065
perma Food grade grease H1 SF10 104069
perma STAR LC 60 Oil (Order oil retaining valve separately)
Description Art. No.
perma High performance oil SO14 104180
perma Multipurpose oil SO32 104188
perma Bio oil, low viscosity SO64 104198
perma Bio oil, high viscosity SO69 104202
perma Food grade oil H1 SO70 104204
perma STAR LC 120 Grease
Description Art. No.
perma Multipurpose grease SF01 100724
perma Extreme pressure grease SF02 100733
perma High temp. grease SF03 100739
perma High performance grease SF04 100744
perma High temp. / Extreme pressure grease SF05 100750
perma Liquid grease SF06 100755
perma High speed grease SF08 100762
perma Multipurpose bio grease SF09 100766
perma Food grade grease H1 SF10 100770
perma STAR LC 120 Oil (Order oil retaining valve separately)
Description Art. No.
perma High performance oil SO14 101096
perma Multipurpose oil SO32 101117
perma Bio oil, low viscosity SO64 101137
perma Bio oil, high viscosity SO69 101145
perma Food grade oil H1 SO70 101148
perma STAR LC 250 Grease
Description Art. No.
perma Multipurpose grease SF01 104473
perma Extreme pressure grease SF02 104480
perma High temp. grease SF03 104485
perma High performance grease SF04 104488
perma High temp. / Extreme pressure grease SF05 104492
perma Liquid grease SF06 104497
perma High speed grease SF08 104500
perma Multipurpose bio grease SF09 104502
perma Food grade grease H1 SF10 104506



perma STAR LC 250 Oil (Order oil retaining valve separately)
Description Art. No.
perma High performance oil SO14 104685
perma Multipurpose oil SO32 104696
perma Bio oil, low viscosity SO64 104711
perma Bio oil, high viscosity SO69 104716
perma Food grade oil H1 SO70 104719
